SAML

CareRight now supports SAML as an authentication mechanism.

When correctly configured; it allows your users to login to the CareRight system via the configured Identity Provider.

Testing

We recommend the use of browser plugins such as saml-tracer to assist in tracing and determining problems.

Configuration

Navigate to System Administration > Users and Groups > SAML.

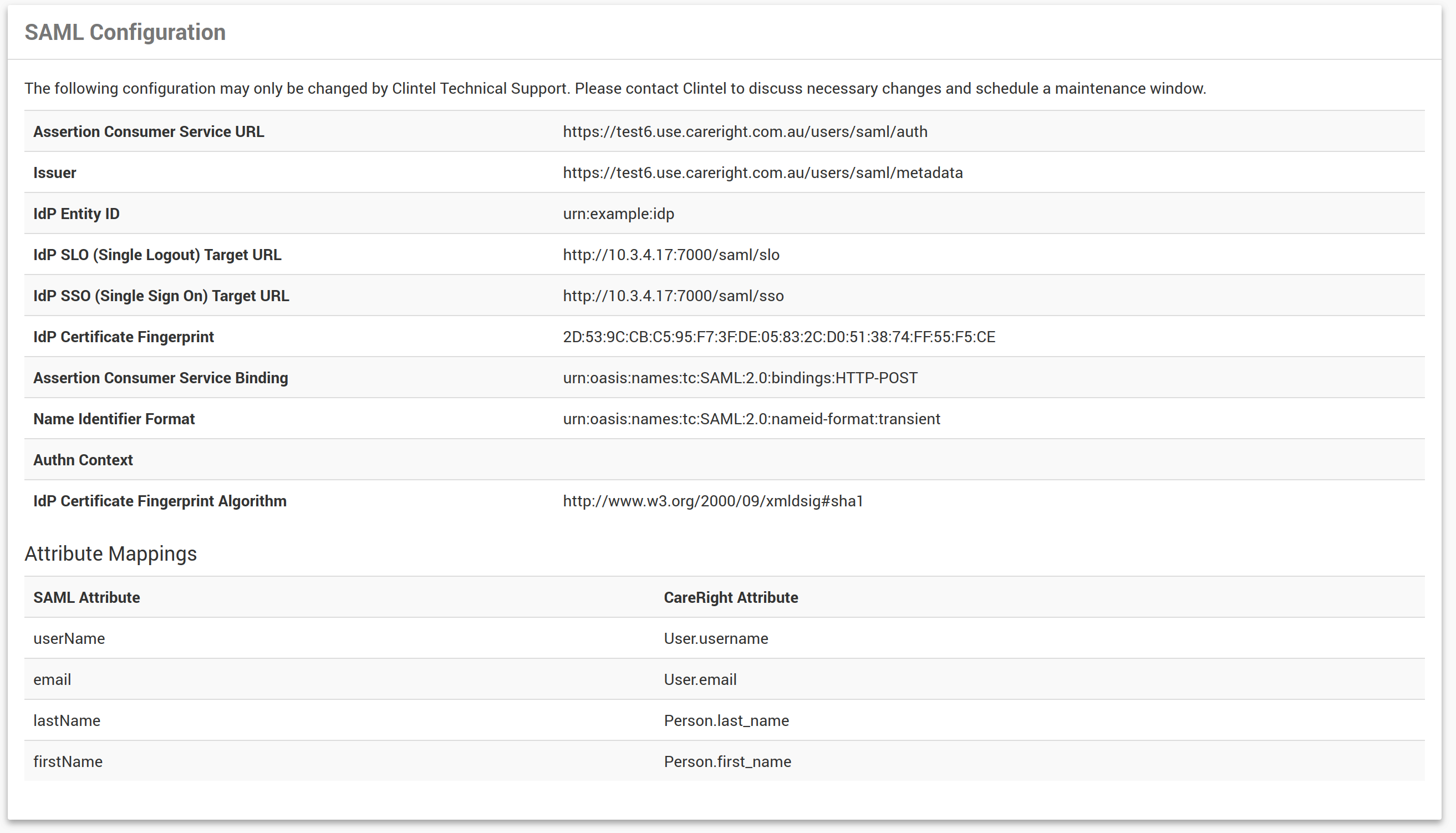

Typically, Clintel Systems will have configured your deployment, and you can view your settings:

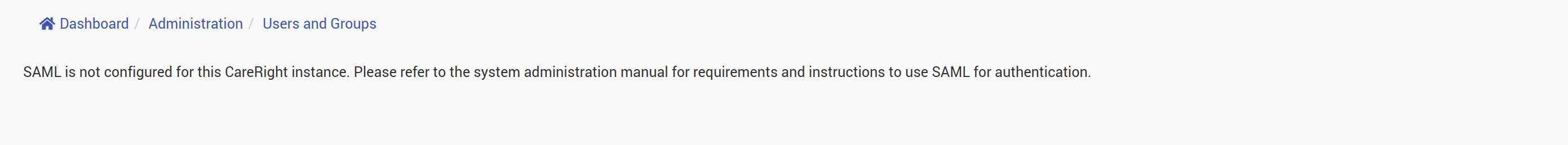

If it has not yet been configured, you will see:

The full list of attributes that can be mapped via claims:

Refer to Admin > Documentation Items for the applicable list for your version of CareRight.

All core User fields
All core Person fields
All core Staff Member fields (as of 6.96 or higher)
Job Title
Groups

Recommended configuration for Azure

https://docs.microsoft.com/en-us/azure/active-directory/develop/single-sign-on-saml-protocol

  assertion_consumer_service_url: https://sandbox1.use.careright.com.au/users/saml/auth

  # our test azure instance:
  idp_slo_target_url: https://login.microsoftonline.com/(instance id)/saml2
  idp_sso_target_url: https://login.microsoftonline.com/(instance id)/saml2
  idp_cert_fingerprint: (fingerprint)

  # this is the their entity ID.  from XML. (EntityDescriptor#entityID).  In Azure is called "Azure AD Identifier"
  idp_entity_id: https://sts.windows.net/(id)/

  # this is OUR entity ID, previously referred to as issuer
  sp_entity_id: https://sandbox1.use.careright.com.au/users/saml/metadata

  assertion_consumer_service_binding: urn:oasis:names:tc:SAML:2.0:bindings:HTTP-POST
  name_identifier_format: urn:oasis:names:tc:SAML:2.0:nameid-format:persistent
  authn_context:
  idp_cert_fingerprint_algorithm: http://www.w3.org/2000/09/xmldsig#sha1

http://schemas.xmlsoap.org/ws/2005/05/identity/claims/emailaddress: "User.email"
http://schemas.xmlsoap.org/ws/2005/05/identity/claims/givenname: "Person.first_name"
http://schemas.xmlsoap.org/ws/2005/05/identity/claims/name: "User.username"
http://schemas.xmlsoap.org/ws/2005/05/identity/claims/surname: "Person.last_name"


# Optional claims
http://schemas.microsoft.com/identity/claims/displayname: "Person.primary_display_name"
http://schemas.xmlsoap.org/ws/2005/05/identity/claims/jobtitle: "Other.job_title"

# Either map users by department (singular) or
http://schemas.xmlsoap.org/ws/2005/05/identity/claims/department: "Group.name"
# Map by groups
http://schemas.microsoft.com/ws/2008/06/identity/claims/groups: "Group.name"

Multiple Groups - Configuring Azure

We recommend following guides such as https://wiki.resolution.de/doc/saml-sso/5.0.x/jira/knowledgebase-articles/technical/jit-and-azure-ad-sending-groups-via-saml-attributes

Ensure you are sending:

A group claim
Group names, not group IDs

Recommended configuration for Okta

set :saml_enabled, true
set :saml_assertion_consumer_service_url,     "https://example-test.use.careright.com.au/users/saml/auth"
set :saml_issuer,                             "http://www.okta.com/unique_id_here"
set :saml_sp_entity_id,                       "https://example-test.use.careright.com.au/users/saml/metadata"
set :saml_assertion_consumer_service_binding, "urn:oasis:names:tc:SAML:2.0:bindings:HTTP-POST"
set :saml_name_identifier_format,             "urn:oasis:names:tc:SAML:2.0:nameid-format:persistent"
set :saml_authn_context,                      "urn:oasis:names:tc:SAML:2.0:ac:classes:PasswordProtectedTransport"
set :saml_idp_cert_fingerprint_algorithm,     "http://www.w3.org/2000/09/xmldsig#sha1"


# attribute mappings - this is the default for OKTA SSO
set :saml_username_attribute,   "name"
set :saml_email_attribute,      "emailaddress"
set :saml_last_name_attribute,  "surname"
set :saml_first_name_attribute, "givenname"
set :saml_group_name_attribute, "division"
set :saml_job_title_attribute, "jobtitle"


# SAML - OKTA:
set :saml_idp_entity_id,                      "http://www.okta.com/unique_id_here"
set :saml_idp_slo_target_url,                 "https://login.company.com.au/app/application_name/unique_id_here/sso/saml"
set :saml_idp_sso_target_url,                 "https://login.company.com.au/app/application_name/unique_id_here/sso/saml"
set :saml_idp_cert_fingerprint,               "00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00:00"

Default Behaviours

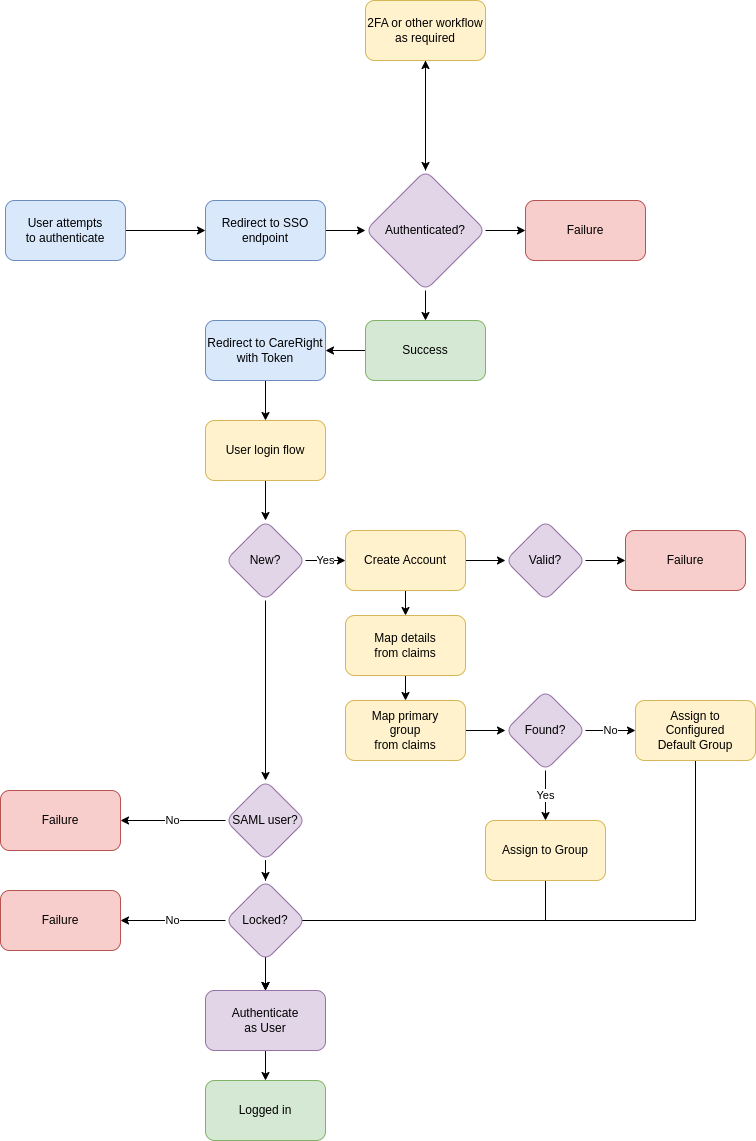

CareRight's workflow is as per the below diagram

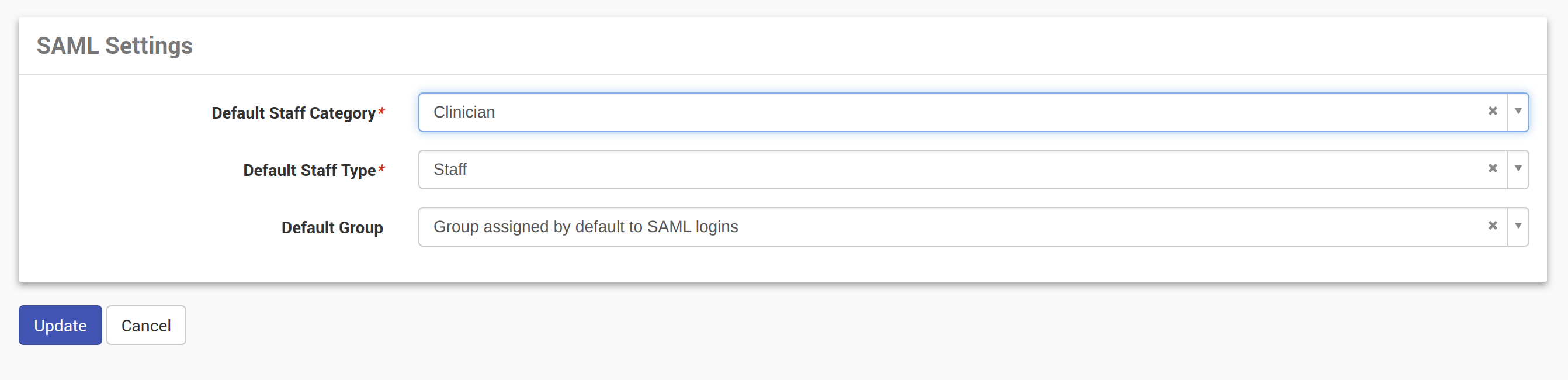

When a new user is registered, they will be created as a particular staff type, and optionally assigned roles.

User display

Some identity providers generate long user identifiers, which aren't suitable.

Example:

To change this behaviour, under System Administration > Global Settings you can swap to 'Username', 'Email' or'Display name'

Account Login

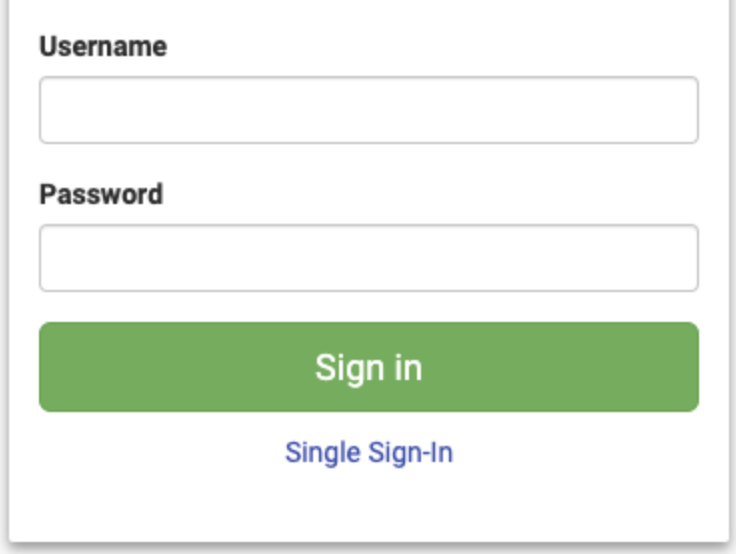

When configured, users can simply choose to Single Sign In to start the authentication process.

Common problems

Multiple user accounts with the same email

Within Careright, a user account must have a unique email. This means if you create a Standard user account for example@example.com; when authenticating with SAML it will not allow a user to be created with that email.

Users must re-authenticate with their password credentials to link accounts.

Bespoke behaviour

User group mapping to staff type

As of CareRight 6.97.20; the following groups are detected on authentication and automatically add a corresponding staff type

CareRight-Exercise Physiology-Student -> Exercise Physiology Student
CareRight-Nutrition & Dietetics-Student -> Nutrition Student
CareRight-Optometry-Student -> Optometry Student
CareRight-Podiatry-Student -> Podiatry Student
CareRight-Psychology & Counselling-Student -> Psychology Student
